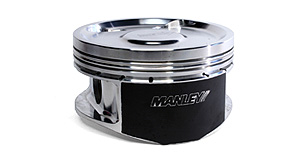

VQ35 - PLATINUM SERIES LIGHTWEIGHT PISTONS - learn more about our pistons

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

Part # Bore Size (mm) Over Size Rod Length Stroke Comp. Distance Dome Volume (cc) Cylinder
Head (cc)
Comp. Ratio Piston Type Piston Wt / Gms Included Ring Set
Nissan 350Z, Maxima, Altima and Infiniti G35 2003-2007 .866"/22mm x 2.500" Pin x .150" Wall
623000C-6 95.50 STD 5.680" 81.4 1.167" -12 57 8.5 Dish 386 46955-6
623002C-6 95.75 +.25mm 5.680" 81.4 1.167" -12 57 8.5 Dish 389 46957-6
623005C-6 96.00 +.5mm 5.680" 81.4 1.167" -12 57 8.5 Dish 393 46960-6
623010C-6 96.50 +1.0mm 5.680" 81.4 1.167" -12 57 8.5 Dish 400 46965-6
623100C-6 95.50 STD 5.680" 81.4 1.167" +7 57 11.0 Dome 418 46955-6
623102C-6 95.75 +.25mm 5.680" 81.4 1.167" +7 57 11.0 Dome 421 46957-6
623105C-6 96.00 +.5mm 5.680" 81.4 1.167" +7 57 11.0 Dome 425 46960-6
623110C-6 96.50 +1.0mm 5.680" 81.4 1.167" +7 57 11.0 Dome 432 46965-6
