Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

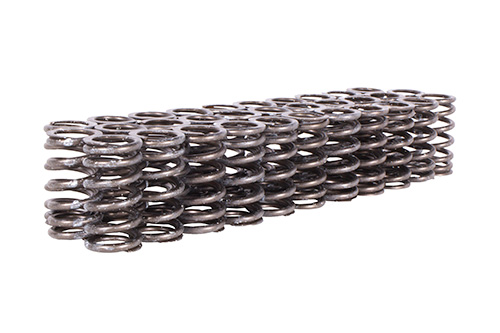

VALVE SPRINGS
Part #
Quantity
Seat Pressure
O.D./I.D.
Outer
Inner
Open Pressure
Stock/Max Lift
Coil Bind
Rate (lbs./in.)
Retainer #
Toyota Tundra 5.7L 3UR-FE Uses factory spring seat
22205-32
32 pcs.
75 @ 1.450”
.990"/.710"
75 @ 1.450"
190 @ 1.020"
205 @ .970"
.430"
.480"
.920"
.265
23205-32
TITANIUM RETAINERS
Valve Stem
Diameter
Dimensions
Part #
Spring
Degree
A
B
C
Step
Wgt / Grams
Toyota Tundra 5.7L 3UR-FE
23205-32
Manley 22205
5.5mm
6°
.920"
.690"
-----
.080"
7

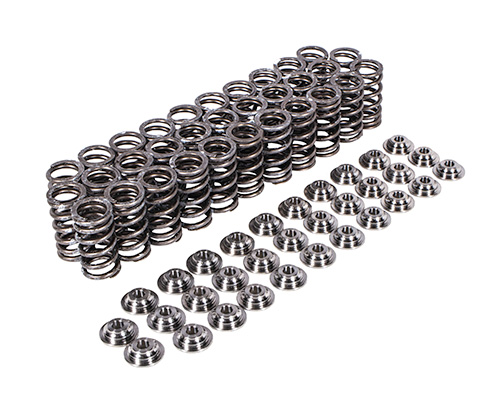

SPRING AND RETAINER KITS
Part #
Quantity
Max Net Lift
Spring #
Retainer #
Toyota Tundra 5.7L 3UR-FE (Uses factory spring seat)
